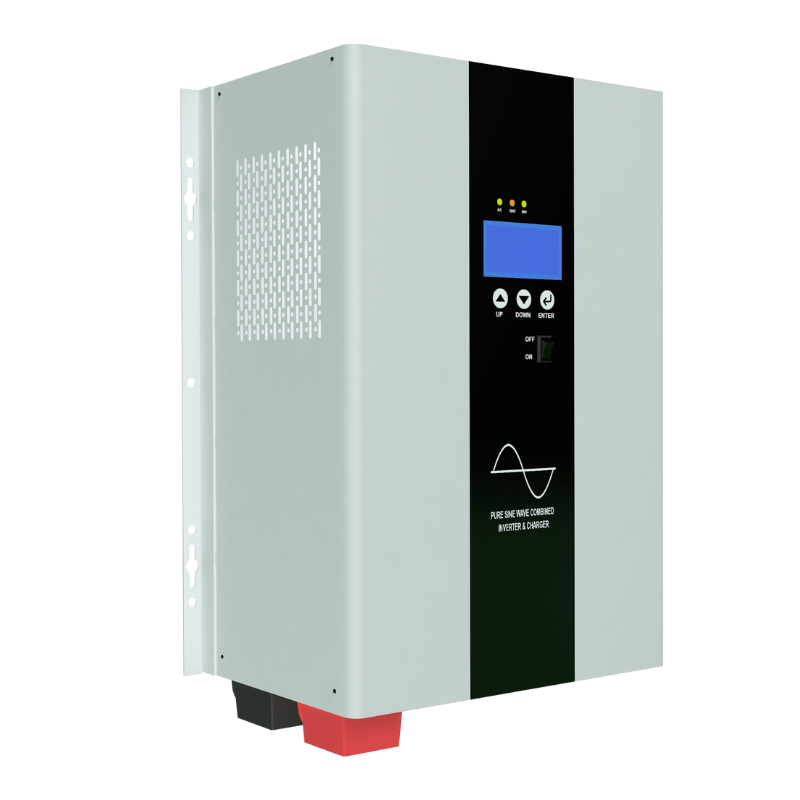

1KW - 12KW 12V 24V 48V low frequency transformer pure sine wave Inverter charger-WP Series

1KW - 12KW 12V 24V 48V low frequency transformer pure sine wave Inverter charger-WP Series

WP series low-frequency transformer-based pure sine wave inverter charger 1KW to 12KW of reliable capacity. Tailor it to your specifications with DC input options of 12V, 24V, or 48V, and an optional battery charger ranging from 0A to 30A for AGM lead acid, Li-ion, LiFePo4 or customized batteries.

QUALITY
WARRANTY
RELIABILITY
CUSTOMIZE

WP-1KW/1.5KW
WP-2KW/3KW
WP-4KW/5KW/6KW
WP-8KW/10KW/12KW

Power capacity: 1KW/ 1.5KW
DC input: 12VDC/ 24VDC
AC input: Single phase 220V/230V/240V or 110V/120V
AC output: Single phase 220V/230V/240V or 110V/120V
Working mode: AC first, DC first, energy saving mode
Battery charger: 30A max (selectable 0A, 5A, 10A, 20A, 30A)
Battery compatible: AGM lead acid, gel, LiFePo4, Li-Ion lithium, other customized battery

Power capacity: 2KW/3KW/3.5KW
DC input: 24VDC/ 48VDC
AC input: Single phase 220V/230V/240V or 110V/120V
AC output: Single phase 220V/230V/240V or 110V/120V
Working mode: AC first, DC first, energy saving mode
Battery charger: 30A max （Selectable 0A, 5A, 10A, 20A, 30A）
Battery compatible: AGM lead acid, gel, LiFePo4, Li-Ion lithium, other customized battery

Power capacity: 4KW/5KW/6KW
DC input: 48VDC
AC input: Single phase 220V/230V/240V or 110V/120V
AC output: Single phase 220V/230V/240V or 110V/120V
Working mode: AC first, DC first, energy saving mode
Battery charger: 30A max （Selectable 0A, 5A, 10A, 20A, 30A）
Battery compatible: AGM lead acid, gel, LiFePo4, Li-Ion lithium, other customized battery

Power capacity: 8KW/10KW/12KW
DC input: 24VDC/ 48VDC
AC input: Single phase 220V/230V/240V or 110V/120V
AC output: Single phase 220V/230V/240V or 110V/120V
Working mode: AC first, DC first, energy saving mode
Battery charger: 30A max （Selectable 0A, 5A, 10A, 20A, 30A）
Battery compatible: AGM lead acid, gel, LiFePo4, Li-Ion lithium, other customized battery

PRODUCT FEATURES

LOW FREQUENCY TRANSFORMER BASED INVERTER

* toroidal transformer inside from 1KW to 6KW, low idle cost
* EI transformer from 8KW to 12KW, robust and strong

PURE SINE WAVE INVERTER & BATTERY CHARGER

* Pure sine wave output, cater to all appliances
* Built-in AC Bypass Relay and UPS Function
* Multi-Stage Smart Charger 30A

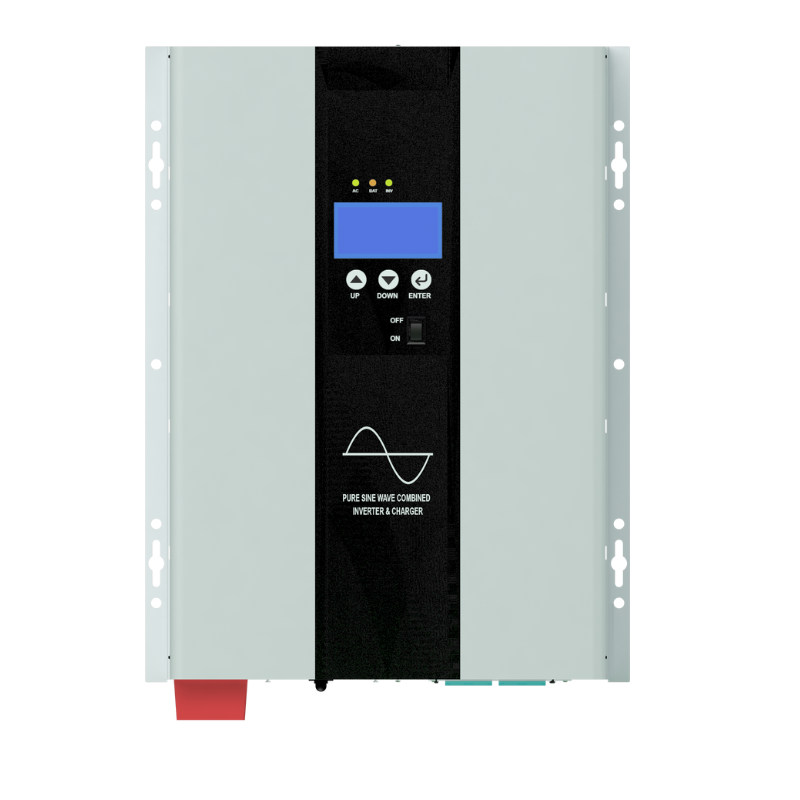

USER-FRIENDLY INTERFACE

* Monitor and control with ease using the intuitive LCD & LED display
* unnecessary to turn off the inverter after setting working mode, battery type or charge current.

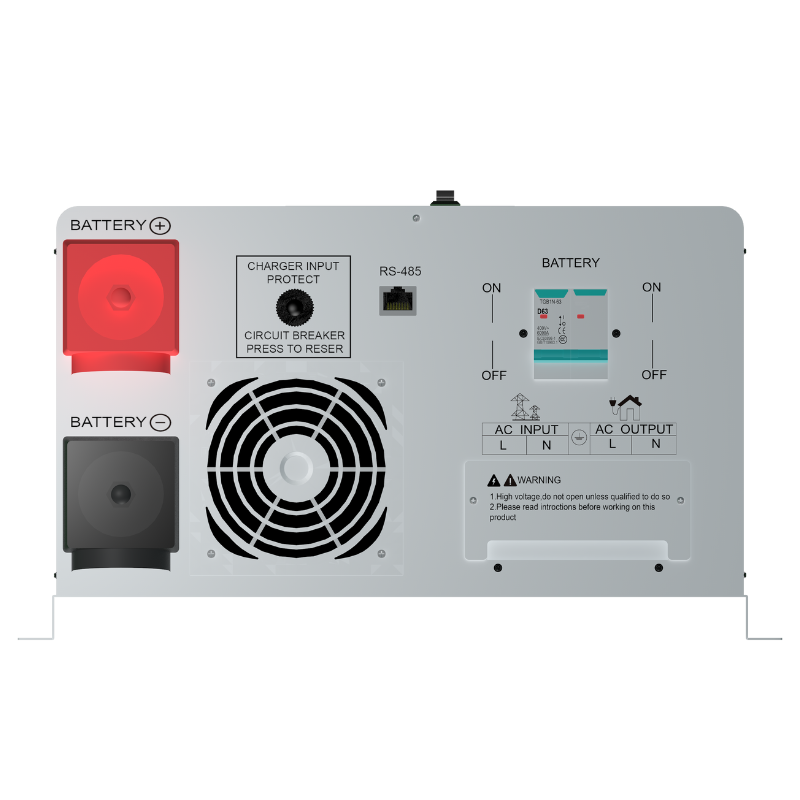

* RS-485 communication port

PROTECTIONS AND SAFETY

* Safety during installation and Maintenance with battery breaker
* Full protections against over-load, over-voltage, over-charge, over-discharge, short-circuit etc.

Feature

Technical Datasheet for WP Series Power Inverter & Charger

Model		WP-1KW	WP-1.5KW	WP-2KW	WP-3KW	WP-4KW	WP-5KW	WP-6KW	WP-7KW	WP-10KW	WP-12KW
Input	Rated power	1KW	1.5KW	2KW	3KW	4KW	5KW	6KW	7KW	10KW	12KW
	Peak power	3KW	4.5KW	6KW	9KW	12KW	15KW	18KW	21KW	30KW	36KW
	Mains voltage range	220VAC: 165VAC - 275VAC 230VAC: 173VAC - 287VAC 110VAC: 83VAC - 137VAC 120VAC: 90VAC - 150VAC
	Frequency range	45 - 65Hz
Battery	Battery type	Lithium battery, lead acid battery, gel battery, customized battery
	DC voltage	12V/24V			24V/48V		48V
	Input voltage range	12V: 10.5V - 15VDC, 24V: 21V-30VDC, 48V: 42V - 60VDC
	Floating charge set	12.9V - 13.6V（12V ）
	Low voltage recovery	12V: 12.6-14.4VDC 24V: 25.2-28.8VDC 48V: 50.4-57.6VDC
	Low voltage shutdown	12V: 10VDC 24V: 20VDC 48V: 40VDC
	overvoltage protection	12V: 16.5VDC 24V: 33VDC 48V: 66V
	Overvoltage alarm	12V: 15VDC 24V: 30VDC 48V: 60VDC
Charger	AC charge current	0A - 30A (optional)
Output	Capable of starting electric motor	0.5HP	1HP	1.5HP		2HP	3HP		4HP	5HP	6HP
	Transfer time	≤ 4ms
	Temperature protection	When temperature ≥ 85℃, inverter alarm; when temperature ≥ 90℃, inverter shutdown automatically
	Overload	Inverter automatically shutdown if overload exceeds 120% rated power within 10 seconds.
	Waveform	Pure sine wave output
	Frequency	50/60Hz
Temperature	Operating temperature	-10℃~70℃
Temperature	Thermal method	Cooling fan with intelligent control: ≥ 42 ℃， fan runs fastly; ＜42 ℃, fan runs slowly
Appearance	Product size(mm) LWH	360295140	495360200			545385200			690395270
	Package size(mm) LWH	452322202	550392270			602419270			740430330
	Net weight(kg)	12	14	16.8	19	23	27	29	49.5	52	56
	Gross weight(kg)	15	17	18.5	21	25	29	31	54	56	58

inverter-1.5kw.png TRANSFORMER INVERTER-3KW.png
